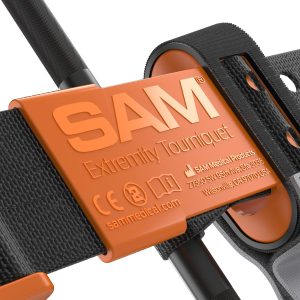

SAM XT Extremity Tourniquet – Black & Orange

SAM XT Extremity Tourniquet – Black & Orange

TRUFORCE™ BUCKLE auto-lock technology activates with an applied force of 22 pounds, eliminating slack which is typically found in all other tourniquet applications
TRUFLEX™ PLATE flexible, allowing it to bend on smaller extremities without breaking
Metal Windlass Rod, lightweight aluminum for consistent reliability when compared to plastic composites. Single rivet through windlass, maintains integrity of windlass
Windlass C Hook, intuitive wider angular opening design, making it easier and more efficient
Night Vision Optimized Tab and Time Band

PROVEN TO SURVIVE
Engineered for rapid application, SAM XT’s innovative design requires fewer windlass turns, and enables easier, faster training and intuitive use. Meets MIL-STD 810G for durability.

TRUFORCE™ BUCKLE
Slack is the main cause of failed tourniquet application. The TRUFORCE™ buckle technology auto-locks to eliminate nearly all tourniquet slack by incorporating innovative baseline force control, activating the locking prongs.

ENGINEERED TO PRESERVE LIFE

TIME BAND – Weather-resistant hook and loop system functions when fully submerged, providing maximum security in the harshest weather. Outer material is optimized for night vision.
WINDLASS C-HOOKS – Secures the Metal Windlass Rod using an intuitive angular design, making windlass locking easier and more efficient.
TRUFLEX™ PLATE – Durable nylon construction distributes force as targeted pressure for maximum strength and flexibility, able to bend on smaller extremities without breaking.
TRUFORCE™ BUCKLE – Innovative auto-lock technology activates locking prongs, eliminating slack typically found in all other tourniquet applications.
METAL WINDLASS ROD – Machined from extruded bars of strong, lightweight 6061-T6 true billet aluminum for consistent reliability when compared to plastic composites.
PRECISION STRAP – Velcro®-dependent tourniquets can fail when wet or dirty. The all-weather Precision Strap is made of single-layer nylon webbing. It features intervaled holes that lock with the TRUFORCE™ Buckle to create a consistent, efficient primary security system. The secondary hook and loop system secures the remaining strap, adding stability and safety.
PRECISION TAB – Intuitive design allows for quicker, easier tourniquet application. Material is optimized for night vision.

TECH SPECS

PACKAGED SIZE & WEIGHT*
Length: 2.5 in (6.3 cm)
Width: 1.5 in (3.8 cm)
Height: 7.25 in (18.4 cm)
Weight: 3.8 oz (108 g)

OPERATING SPECIFICATIONS
TRUFORCE™ Buckle Technology auto-locks to engage strap holes within circumferential range: 5.5 in – 35 in (13.9 cm – 88.9 cm)

*Size and weight vary by configuration and manufacturing process.
